UNS S31703 1.4438 317L SS Coil ASTM A240 ASTM EN GB JIS

Name: UNS S31703 14438 317L SS Coil ASTM A240 ASTM EN GB JIS
Brand: TISCO BAOSTEEL POSCO
Price: 2400 USD

Buy cheap UNS S31703 1.4438 317L SS Coil ASTM A240 ASTM EN GB JIS product

Brand Name : TISCO BAOSTEEL POSCO

Model Number : 201 304 309S 310S 316L 317L 321 347 410 420 430.etc

Certification : ISO

Place of Origin : China

MOQ : 2 Ton

Price : 2400 - 3500 USD/Ton

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

Products : Stainless Steel Coil

Material : Stainless Steel

Thickness : 0.1 - 16.0mm

Width : 1000mm 1219mm 1500mm

Surface : 2B NO.1 NO.4 8K

Grade : 201 304 309S 310S 316L 317L 321 347 410 420 430 436 439 441 444.etc

Standard : ASTM EN GB JIS

Service : Cutting

Contact Now

UNS S31703 /1.4438 / 317L Stainless Steel Coil Roll ASTM A240 Stainless Steel Coils

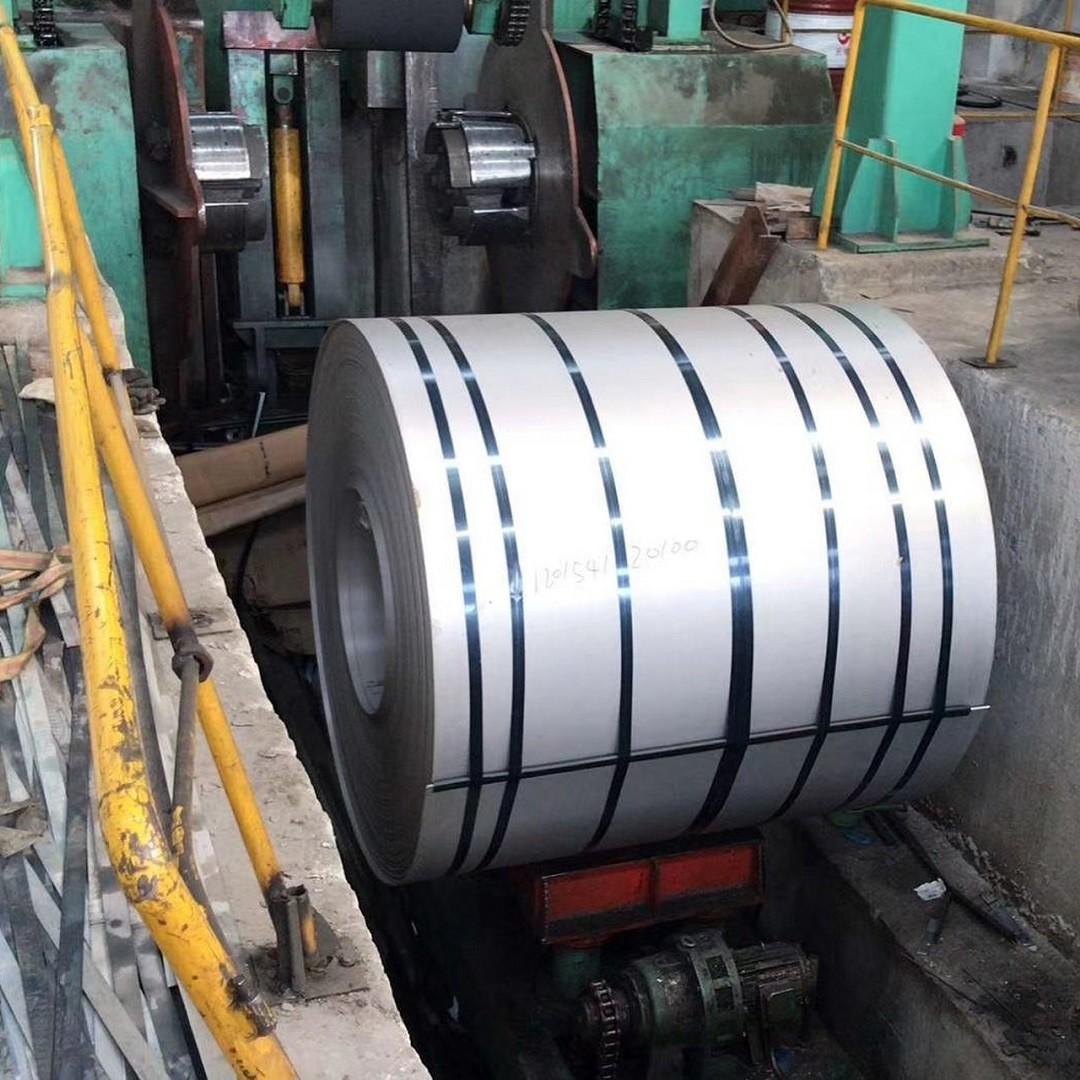

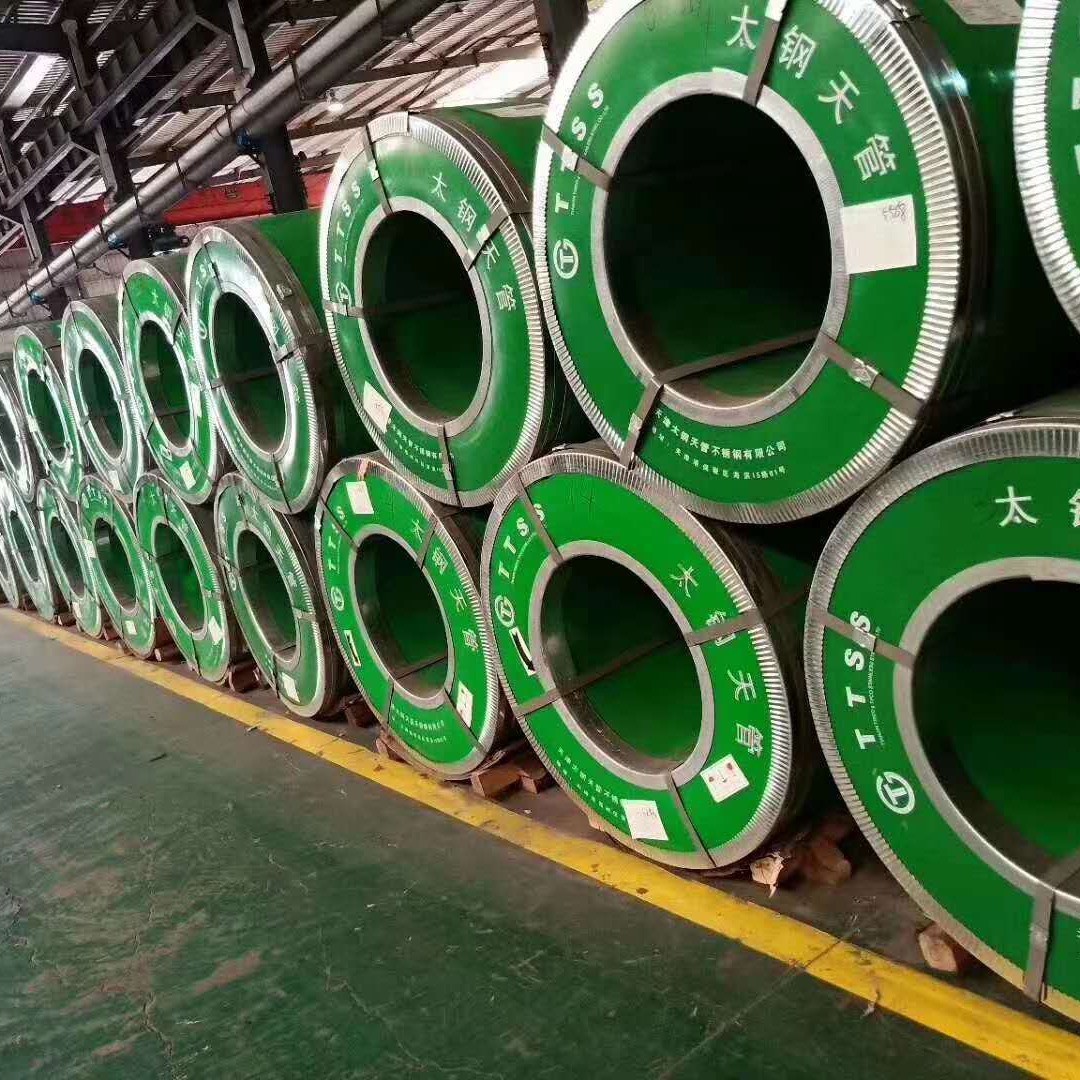

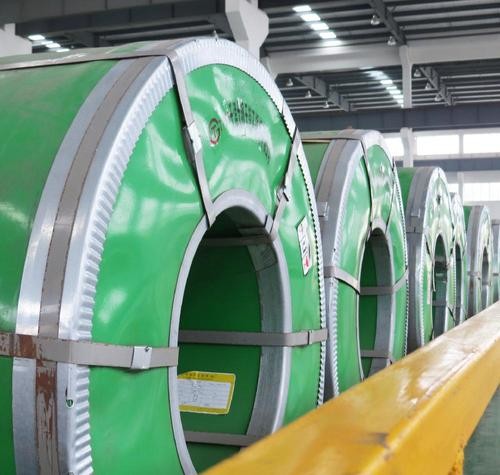

317L Stainless Steel Coil

317L stainless steel coil is one of the most popular stainless steel coils in the market. It is a high strength low-alloy steel, which has good corrosion resistance. The main feature of this metal is its high resistance to corrosion, which makes it ideal for use in chemical plants and marine applications.

In addition, compared with 316L stainless steel coil, 317L stainless steel coil has higher ductility, stress corrosion resistance, compressive strength and high temperature resistance.

It is low carbon grade or L grade, this grade has anti-sensitization performance during welding and heat treatment.

317L Stainless Steel Coil Specifications

Product Name	317L stainless steel coil
Grades	317L, 1.4438, UNS S31703
Hardness	≤95HRB
Thickness	0.02mm-6.0mm
Width	1.0mm-1500mm
Edge	Slit/Mill
Quantity Tolerance	±10%
Paper Core Internal Diameter	Ø500mm paper core, special internal diameter core and without paper core on customer request
Surface Finish	NO.1/2B/2D/BA/HL/Brushed/6K/8K Mirror,etc
Packaging	Wooden Pallet/Wooden Case
Payment Terms	30% TT deposit and 70% balance before shipment, 100% LC at sight
Delivery Time	5-7 working days
MOQ	200Kgs
Shipping Port	Shanghai/Ningbo port
Sample	The sample of 317L stainless steel coil is available

317L Stainless Steel Coil Chemical Compositions

The chemical components of grade 317L stainless steel coil is summarized in the following table:

Grade	Standard	C	Si	Mn	P	S	Cr	Ni	Mo
317L	ASTM A240	≤0.03	≤1.00	≤2.00	≤0.045	≤0.030	18.00-20.00	11.00-15.00	3.0-4.0

317L Stainless Steel Coil Mechanical Properties

Grade	EN Grade	Yield Strength Rp0.2(N/mm²)	Tensile Strength Rm(N/mm²)	Hardness	Vickers Hardness(HV)	Elongation A50%
317L	1.4438	≥205	≥515	Annealed	≥150	≥40

What are the applications that 317L stainless steel coils can be used?

317L stainless steel coils can be used in a wide range of applications, including:

Condensers in fossil
Pulp and paper manufacturing
Nuclear fueled power generation stations
Chemical and petrochemical process equipment

Features of 317L stainless steel coils

317L stainless steel coil has excellent welding characteristics including the ability to be welded using conventional methods or TIG welding.

317L stainless steel coil also has good forming properties making it easy to form into complex shapes using conventional forming techniques.

The mechanical properties at room temperature are very similar to those of 316L stainless steel coil.

The yield strength of both materials is about 25% higher than 304 stainless steel coil, but the lower yield strength of 316L stainless steel coil limits their use to applications where higher working loads are not expected.

What is the standard sea packaging of 317L stainless steel coil?

Standard export sea packaging:
Waterproof Paper Winding+PVC Film+Strap Banding+Wooden Pallet or Wooden Case;
Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
Other special packaging will be designed as customer’s request;
Eye to wall and eye to sky are both available;
By International Express: DHL/UPS/FEDEX/EMS and our own express line;
By air or By sea;
Shipping port: Shanghai, Ningbo or as your request.
