2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate

Product Categories

JIANGSU MITTEL STEEL INDUSTRIAL LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 2mm 25mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate AntiSlip Plate
Brand: DELTA
Price: 2800 USD

Brand Name : DELTA

Model Number : 304 316L

Certification : ISO

Place of Origin : China

MOQ : 500 kgs

Price : 2800 -3200 USD/Ton

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : wooden pallets + waterproof paper

Products : stainless steel chequered plate

Grade : 304 316L

Standard size : 1000*2000mm 1219*2438mm 1500*6000mm

Thickness : 0.6- 10.0mm

Brand : TISCO BAOSTEEL POSCO LISCO

Loading Port : Shanghai Port

MOQ : 500 kgs

Packing : wooden pallets + waterproof paper

Contact Now

2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate

Quick Information

Steel Grade	SS 304 / SS 316 / SS 201
Material	STAINLESS STEEL CHEQUERED PLATE 316
Surface Treatment	Hot Rolled
Material Grade	SS304 / SS316 / SS202
Thickness	0.6 - 8.0mm in stock
Brand	DELTA
Size (feet X feet)	8 FEET X 4 FEET / 5 FEET X 10 FEET
Raw Material	SS CHEQUERED PLATE

More Informations of our Products

Item	Stainless Steel Checker Plate/Stainless Steel Chequered Plate
Raw Material	Stainless steel sheet (hot rolled and cold rolled)
Grades	201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410, 410S, 420, 430, 904L, etc.
Thickness	0.6mm-10mm
Stock Thickness	0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm,10mm
Width	600mm – 1,800mm
Pattern	Chequered pattern, diamond pattern, lentils pattern, leaves pattern, etc.
Finish	2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc.
Package	Standard export package

Chemical Composition of Stainless Steel Checkered Plate

Grade	C	Mn	Si	P	S	Cr	Ni	N	Fe
Stainless Steel Chequered 304 Plates	0.07max	2.0max	0.75max	0.045max	0.03max	min: 18.0 max: 20.0	min: 8.0 max: 10.5	—	—
Stainless Steel Chequered 304L Sheets	0.03max	2.0max	0.75max	0.045max	0.03max	min: 18.0 max: 20.0	min: 8.0 max: 12.0	0.10 max	—
Stainless Steel Chequered 304H Coil	min: 18.0 max:20.0	min: 8.0 max: 10.5	min: 0.04 max:0.10	0.75 max	2.0 max	0.045 max	0.03 max	0.10 max	—
Stainless Steel Chequered 316 Foil	Min	-	-	-	0	-	16.0	10.0	-
Stainless Steel Chequered 316 Foil	Max	0.08	2.0	0.75	0.045	0.03	18.0	14.0	0.10
Stainless Steel Chequered 316L Plates	Min	-	-	-	-	-	16.0	10.0	-
Stainless Steel Chequered 316L Plates	Max	0.03	2.0	0.75	0.045	0.03	18.0	14.0	0.10
Stainless Steel Chequered 316H Sheet	Min	0.04	0.04	0	-	-	16.0	10.0	-
Stainless Steel Chequered 316H Sheet	max	0.10	0.10	0.75	0.045	0.03	18.0	14.0	-

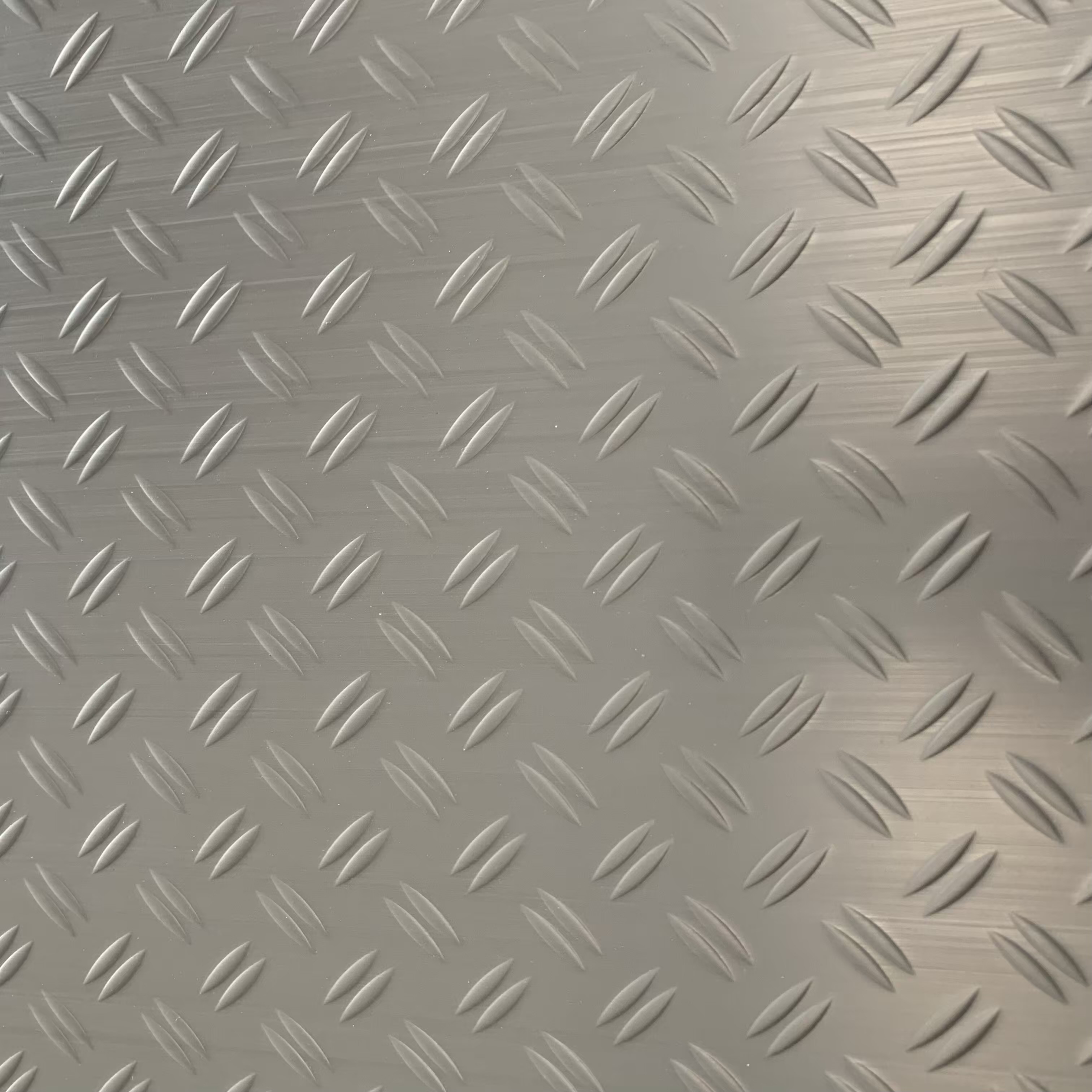

Products Picture

2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate
