ASTM EN DIN JIS Standard Stainless Steel Checkered / Stainless Steel Diamound Plate
| Item | Stainless Steel Checker Plate/Stainless Steel Chequered Plate |
| Raw Material | Stainless steel sheet (hot rolled and cold rolled) |
| Grades | 201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410, 410S, 420, 430, 904L, etc. |
| Thickness | 0.6mm-10mm |
| Stock Thickness | 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm,10mm |
| Width | 600mm – 1,800mm |
| Pattern | Chequered pattern, diamond pattern, lentils pattern, leaves pattern, etc. |
| Finish | 2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc. |
| Package | Standard export package |
Product Description
The Stainless Steel Checkered Plate is made of high-quality stainless steel through multiple processes such as forging, stamping and laser cutting. Our manufacturing process is mature and exquisite, so the quality of the finished product is superior compared to other brands. Its surface is pressed by professional equipment, with raised patterns and very smooth overall. There are various specifications, including different thicknesses, widths, etc.
We are also happy to provide customized services for customers who need it, including custom samples, slitting, stamping, etc. The Stainless Steel Checkered Plate is often used in industries such as machining, construction work, chemical equipment, etc.
Features
Our Stainless Steel Checkered Plate is superior in quality and moderates in price so that is saleable in the market. First of all, the stainless steel material itself has very good characteristics, not easy to rust, and very strong. Besides, the raised texture on its surface increases its slip resistance. In addition, its surface is enhanced by our special treatment, which enhances its corrosion resistance and keeps the surface bright even when used outdoors. What's more, our cutting process into vulgar, to ensure a smooth cut, not easy to scratch. We offer our customers the best products at a low price with a high cost performance ratio.
Application
Its special texture reduces the risk of sliding, making it a solution for stairs, flyovers, sidewalks and ramps in industrial environments. Its superior non-slip performance means that it is often used in the interior of ambulances and the pedals of fire trucks. Other applications include truck beds and trailer floors.
Specifications
- Stainless steel checkered plate
- Standard: ASTM, JIS, DIN
- Thickness: 2.0-16.0mm
- Normal Size: 1000mm X2000mm; 1219mm X 2438mm; 1219mm X 3048mm, 1500mm X3000mm, 4'X 8', 5'X 10', customized size available. slit edge.
- Material Type: 200 series, 300 series
- Surface: NO.1 with checkered, annealed and pickled with different design
Chemical Composition of Stainless Steel Checkered Plate
| Type | C | Mn | P | S | Si | Cr | Ni |
| 304/1.4301 | ≤ 0.08 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | ≤ 0.75 | 18.0-20.0 | 8.0-10.5 |
| 304L/1.4306 | ≤ 0.03 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | ≤ 0.75 | 18.0-20.0 | 8.0-12.0 |
| 316/1.4401 | ≤ 0.08 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | ≤ 0.75 | 16.0-18.0 | 10.0-14.0 |
| 316L/1.4404 | ≤ 0.03 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | ≤ 0.75 | 16.0-18.0 | 10.0-14.0 |
| 201(Ni≥1.0%) | ≤ 0.12 | 8.5-10.0 | ≤ 0.06 | ≤ 0.030 | ≤ 1.00 | 14.0-16.0 | ≥1.0 |
| 201(Ni<1.0%)%) | ≤ 0.15 | 8.5-10.0 | ≤ 0.06 | ≤ 0.030 | ≤ 1.00 | 14.0-16.0 | <1.0 |
| 430 | ≤ 0.12 | ≤ 1.00 | ≤ 0.045 | ≤ 0.030 | ≤ 1.00 | 16.0-18.0 | ≤ 0.75 |
Package
- Packed by wooden pallet. Standard export seaworthy package.
- Min order quantity: 1tons
- Delivery time: within 15 days after receiving deposit or L/C.
- Payment term: TT or irrevocable at sight L/C
- Price term: FOB Foshan/ Guangzhou/ Shenzhen; CIF, CNF
FAQ
Q: What is the MOQ?
A: Stainless steel coils 3 tons; Stainless steel plates 1 ton; Stainless steel tubes 1ton.
Q: What is the delivery time?
A: Within 20 days after receiving deposit or L/C.
Q: How does your company do regarding quality control?
A: BV and SGS certificates, production process followed the ISO 9000 system. Chemical content and Mechanical test can be provided for each shipment.
Product Tags:
|
|

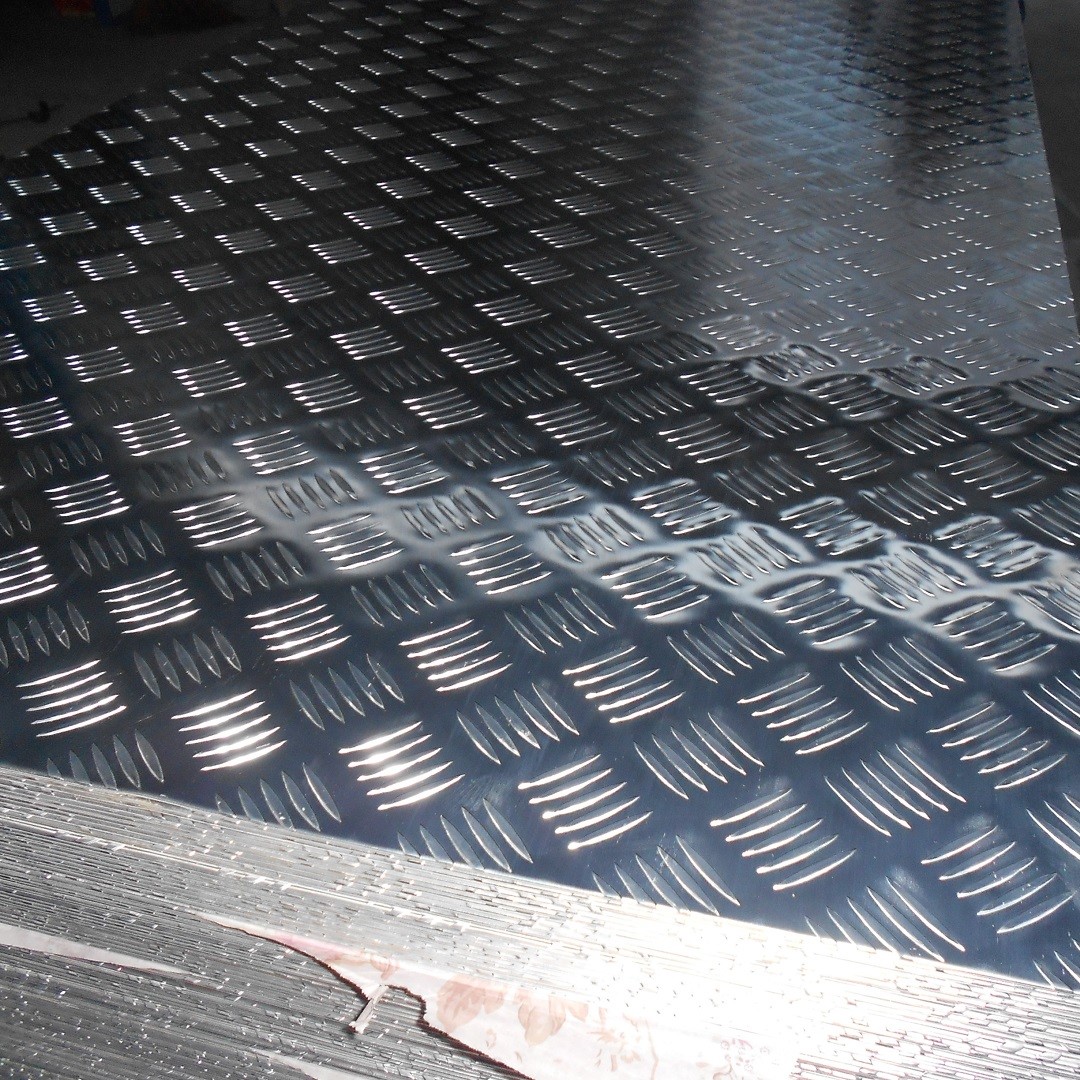

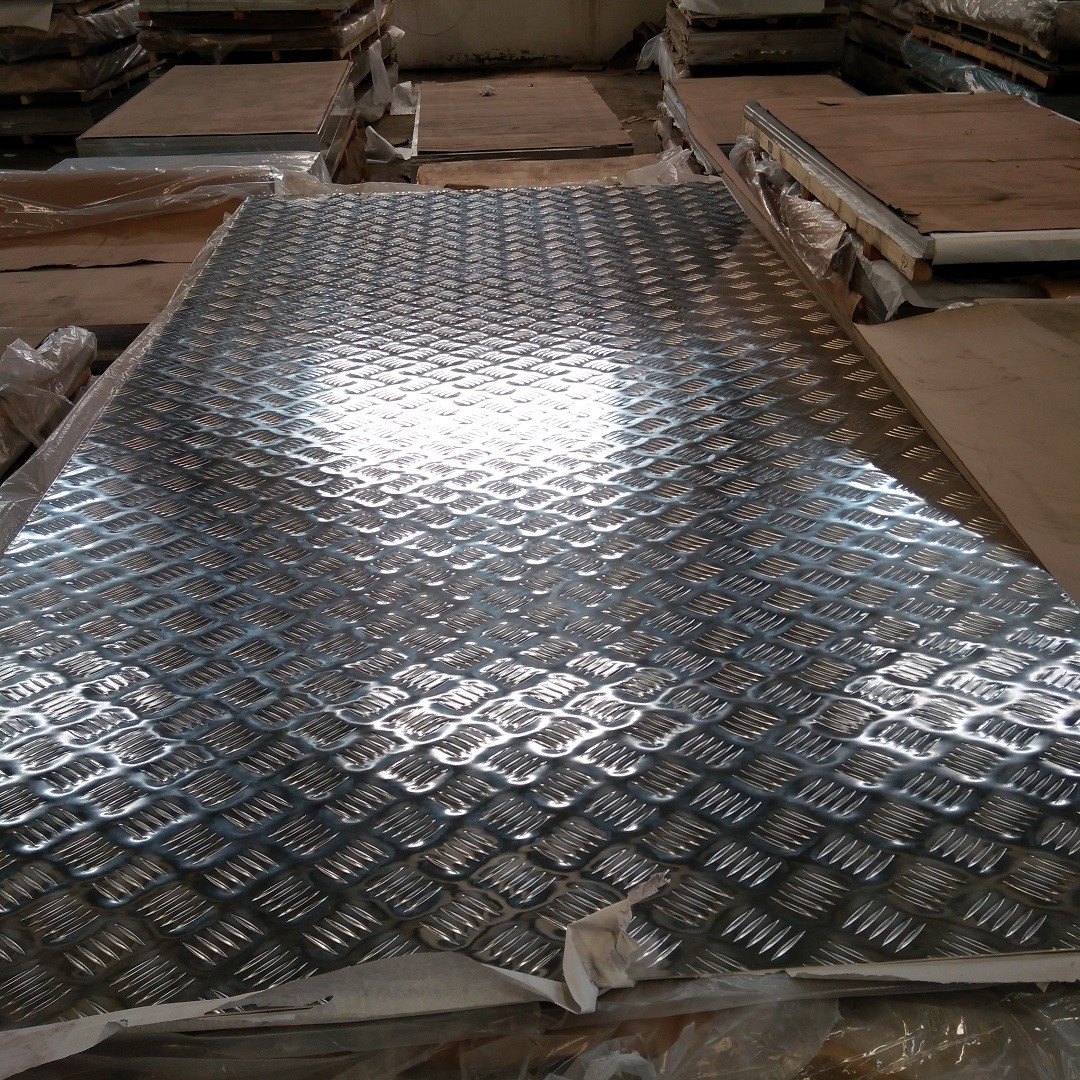

ASTM EN DIN JIS Standard Stainless Steel Checkered / Stainless Steel Diamound Plate Images
|
