ASTM A240 316L Stainless Steel Shimming Strip 0.5mm - 3.0mm Thicknesses Widths

Product Categories
JIANGSU MITTEL STEEL INDUSTRIAL LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

ASTM A240 316L Stainless Steel Shimming Strip 0.5mm - 3.0mm Thicknesses Widths

Brand Name : TISCO

Model Number : 316L / 1.4404

Certification : ISO

Place of Origin : China

MOQ : 2 Ton

Price : 2500 - 3450 USD/Ton

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

Products : stainless steel strip

Thickness : 0.5-3.0mm

Width : within 1500mm

MOQ : 500 kgs

Grade : 200 series 300 series 300 series

Surface : BA 2B NO.4 HL 8K NO.1

Standard : ASTM EN GB JIS

Packing : wooden frame and water proof paper

Contact Now

ASTM A240 316L Stainless Steel Shimming Strip 0.5mm - 3.0mm Thicknesses Widths



Products Specification



Product Name 316L Stainless Steel Strips
Length As required
Width 3mm-1219mm or as required
Thickness 0.15 - 3.0mm or as required
Standard AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
Technique Hot rolled / cold rolled
Surface Treatment 2B or according to customer requirement
Thickness tolerance ±0.01mm
Material 201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S 309S, 410, 410S,420, 430, 431, 440A,904L,2205,2507
Application It is widely used in high temperature applications, medical devices, building materials, chemistry, food industry, agriculture, ship components.It also applies to food, beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen.
MOQ 1tons.We also can accept sample order.
Shipment time Within 15-20 workdays after receiving deposit or L/C

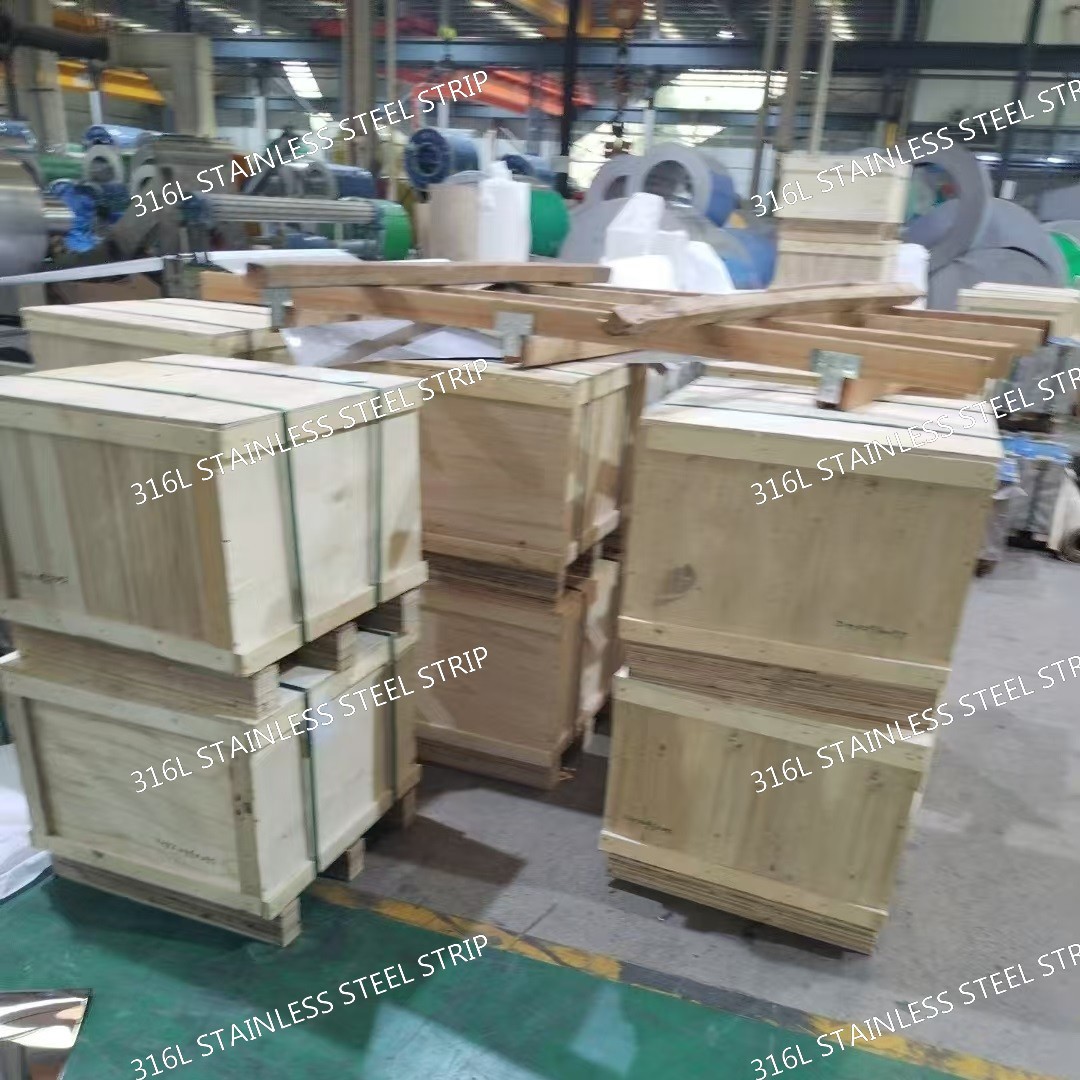

Export packing Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Capacity 250,000 tons/year



Product Overview​

Our 316L stainless steel strip is a premium-grade corrosion-resistant alloy product, meticulously manufactured to meet the highest industry standards. As a low-carbon variant of 316 stainless steel, it significantly reduces the risk of carbide precipitation during welding, ensuring superior intergranular corrosion resistance. This makes it an ideal choice for a wide range of applications, especially in highly corrosive environments.​

Key Features​
  • Exceptional Corrosion Resistance: Thanks to the addition of molybdenum, 316L stainless steel strip offers outstanding resistance to various chemicals, acids, and chloride solutions. It performs well in marine, pharmaceutical, and chemical processing environments, where exposure to harsh substances is common.​
  • High-Temperature Stability: It can maintain excellent mechanical properties and structural integrity in high-temperature conditions, with a service temperature range typically from -196°C to 800°C. This feature makes it suitable for applications in heat exchangers, furnace parts, and exhaust systems.​
  • Superior Formability: The strip has excellent cold-workability and ductility, allowing it to be easily formed into various shapes through processes like rolling, stamping, and bending. This enables the creation of customized components according to specific design requirements.​
  • Low Magnetic Permeability: With its low magnetic properties, 316L stainless steel strip is an appropriate option for applications where magnetic interference needs to be minimized, such as in medical devices and precision instruments.​
  • Hygienic and Easy to Clean: Its smooth surface resists dirt, bacteria, and other contaminants, making it a preferred material for the food and beverage, and medical industries where strict hygiene standards are required.​
Technical Specifications​
​
Parameter​




Details​




Chemical Composition​




Carbon (C) ≤0.03%, Chromium (Cr) 16.0 - 18.0%, Nickel (Ni) 10.0 - 14.0%, Molybdenum (Mo) 2.0 - 3.0%, Manganese (Mn) ≤2.0%, Silicon (Si) ≤1.0%, Phosphorus (P) ≤0.045%, Sulfur (S) ≤0.03%​




Thickness Range​




0.05mm - 3.0mm​




Width Range​




5mm - 600mm​




Length​




Customizable​




Standard​




Complies with ASTM A240, EN 10088, JIS G4305, etc.​




Surface Finish​




2B (bright cold-rolled), BA (bright annealed), No.4 (polished), HL (hairline), mirror finish​







​
Applications​
  • Marine Industry: Used for shipbuilding components, seawater handling equipment, and offshore structures due to its excellent corrosion resistance in saltwater environments.​
  • Medical Field: Applied in the production of surgical instruments, medical implants, and hospital equipment, leveraging its biocompatibility, hygiene, and low magnetic properties.​
  • Food and Beverage: Ideal for food processing machinery, storage tanks, and kitchen equipment, ensuring compliance with strict hygiene regulations.​
  • Chemical Processing: Suited for pipes, valves, and reactors in chemical plants, capable of withstanding highly corrosive chemicals.​
  • Architectural Decoration: Used for decorative trims, handrails, and facade cladding, combining aesthetic appeal with durability and corrosion resistance.​
Customization and Services​

We offer comprehensive customization services to meet your specific needs. Our experienced technical team can assist with material selection, processing techniques, and surface finish options. Whether you require a specific size, shape, or surface treatment, we are committed to providing high-quality 316L stainless steel strips that exceed your expectations. Additionally, we ensure prompt delivery and reliable after-sales support to guarantee a seamless purchasing experience.​

ASTM A240 316L Stainless Steel Shimming Strip 0.5mm - 3.0mm Thicknesses WidthsASTM A240 316L Stainless Steel Shimming Strip 0.5mm - 3.0mm Thicknesses WidthsASTM A240 316L Stainless Steel Shimming Strip 0.5mm - 3.0mm Thicknesses WidthsASTM A240 316L Stainless Steel Shimming Strip 0.5mm - 3.0mm Thicknesses Widths
