99.9% Pure Copper C11000 Round Copper Bar
ASTM EN DIN Standard with 4-250mm Diameter Range
Product Specifications
| Product Name | Copper Rod |
|---|
| Shape | Round/Square/Rectangular/Flat, etc |
|---|
| Size | Regular size 600x1500mm or Customized |
|---|
| Grade | Pure Copper: C10100/C10200/C11000/C12000/C12200
Copper Alloy: C14500/C17200/C17300/C17510/C18150/C19200/C19210/C19400
Brass: C22000/C23000/C24000/26000/26800/27000
Lead Brass: C33000/CuZn36Pb3/C35000/C35300/C36010/C37000/37700/C38000/C38500/CuZn39Pb3/CuZn40Pb2
Tin Brass: C44300/C44500/C46400/HSn90-1
Aluminum Brass: C68700/HAl77-2/HAl66-6-3-2/HAl64-3-1
Tin Bronze: C51000/C51100/C51900/C52100/C54400/CuSn4/CuSn5/CuSn5Pb1/CuSn6/CuSn8
Aluminum Bronze: C60800/C61300/C61900/C62300/C63000
Copper Nickel Alloy: C70400/C71500/C70600/C70620/C73500/75200/76200/C77000 |
|---|
| Temper | H, 1/2H, 3/4H, 1/4H, EH, SH, O60, etc. |
|---|
| Surface | Mill, Polished, bright or customized |
|---|
| MOQ | 1 ton |
|---|
| Delivery Time | 5-10 days after payment received |
|---|
| Payment Terms | 30% TT deposit + 70% TT balance before delivery |
|---|
C11000 Copper Bar Properties
C11000 copper bar offers excellent electrical and thermal conductivity, corrosion resistance, and superior processing properties. It can be easily welded and brazed. With minimal impurities affecting conductivity, this material maintains consistent performance, though it may be susceptible to "hydrogen disease" when processed at high temperatures (>370°C) in reducing atmospheres.
C11000 Chemical Composition
| Grade | Cu | Pb | Fe | Zn |
|---|
| C11000 | ≥99.90% | - | - | - |
Manufacturing Specifications
| Type | Grade | Shape | Temper | Dimension | Length (mm) |
|---|
| Extruded | C11000 | Round | O | 16-<30 | L500-5000 |
| Extruded | C11000 | Round | O | 30-300 | OD≤50 L1000-5000
OD:50-75 L500-5000 |
| Extruded | C11000 | Rectangle | O | 20-120 | OD>75-120 L500-4000 |
| Extruded | C11000 | Square, Hexagonal | O | 20-120 | OD>120 L300-4000 |
| Drawing | C11000 | Round | O, H | 6-80 | OD≤50 L1000-500
OD>50-80 L500-5000 |
| Drawing | C11000 | Square, Hexagonal | H | 8-60 | |
Standard Stock Sizes
4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm 18mm 19mm 20mm 22mm 24mm 25mm 27mm 28mm 30mm 32mm 35mm 38mm 40mm 42mm 45mm 48mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 115mm 120mm 125mm 130mm 140mm 150mm 160mm 180mm 190mm 200mm 210mm 220mm 230mm 240mm 250mm
Packaging & Shipping
Export standard package, bundled or as required.
Container specifications:
- 20ft GP: 5.9m(length) × 2.13m(width) × 2.18m(high) - approx. 24-26 CBM
- 40ft GP: 11.8m(length) × 2.13m(width) × 2.18m(high) - approx. 54 CBM
- 40ft HG: 11.8m(length) × 2.13m(width) × 2.72m(high) - approx. 68 CBM

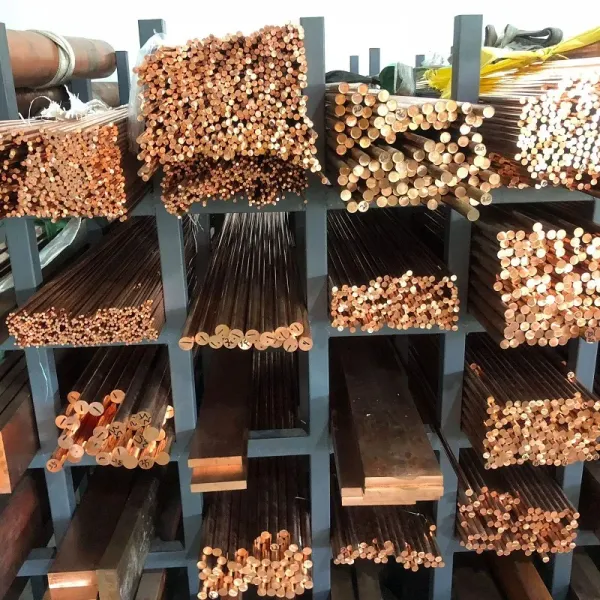

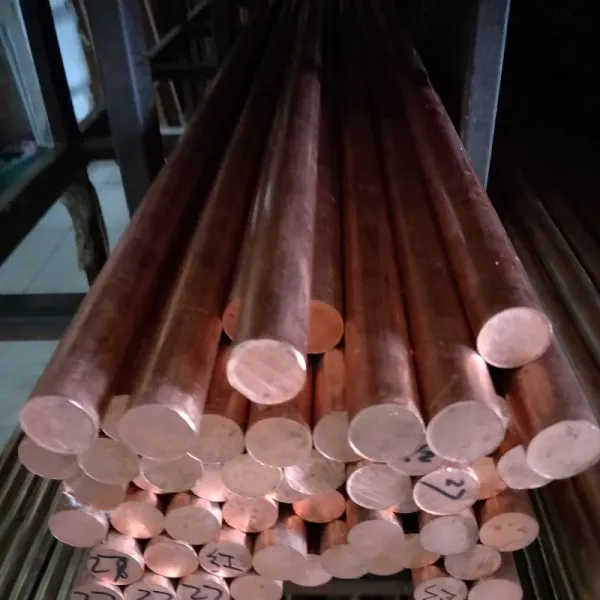

Product Images
